This configuration offers a completely automated solution via an integrated, SMEMA-compatible conveyor system, allowing completely automatic board handling and easy integration into high volume production lines. Configurable as ICT, pre-functional, functional and combinational. The compact footprint and the compliance with WCM criteria, enable easy and successful integration both in-line and/or within an automated test island. Cost reduction and high throughput guaranteed.

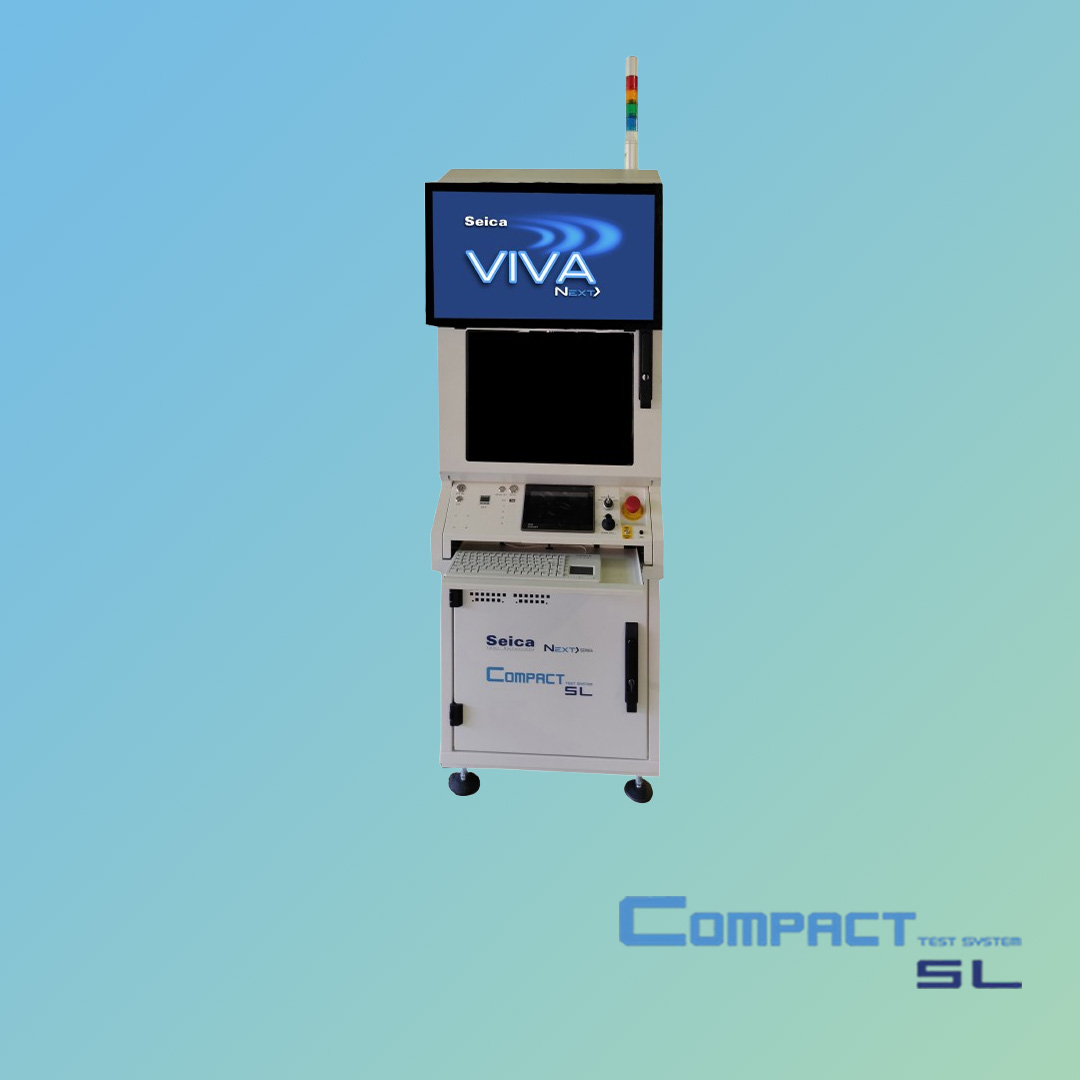

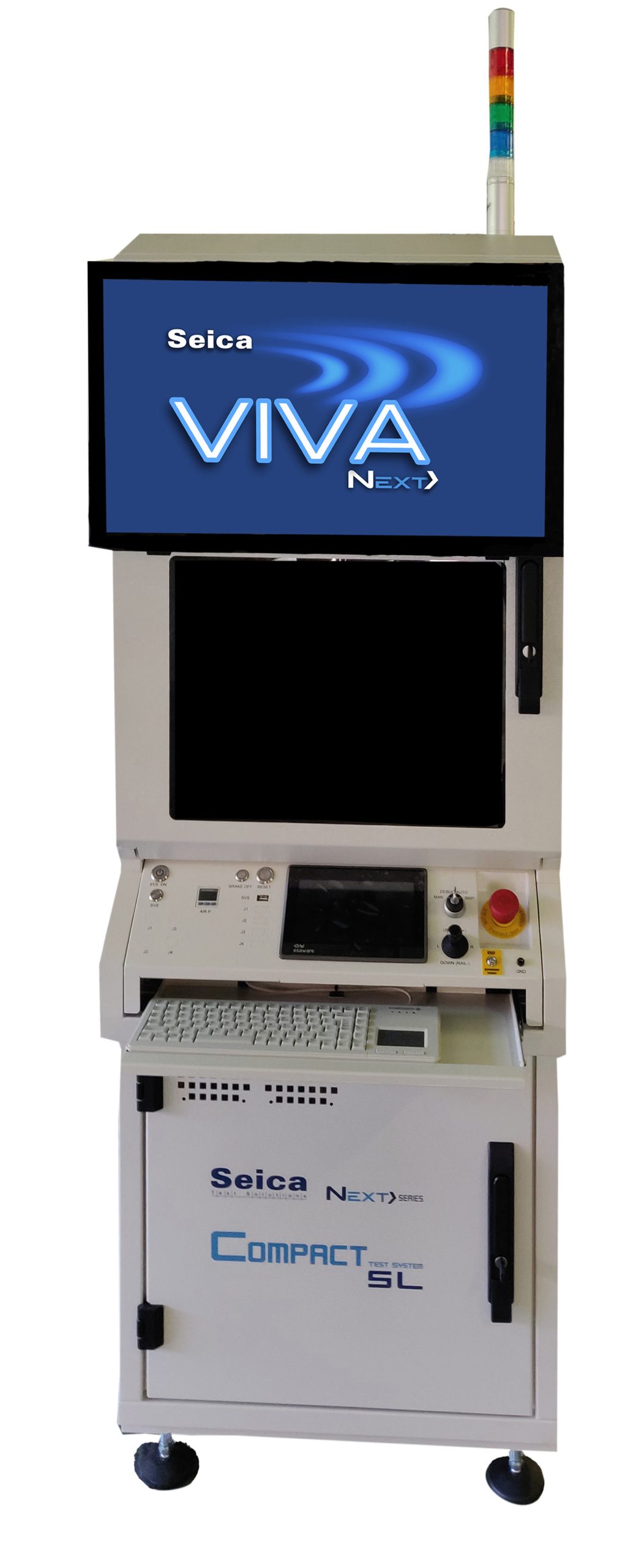

Compact SL is particularly suitable for:

  • parametric and in-circuit tests

  • functional tests

  • On-board programming

  • In-line integration

  • High-volume production

  • Automated test islands

  • Operator-free use

  • Handling costs reduction


  • Up to 1536 analog channels

  • Up to 128 hybrid channels (digital channel up to 10 MHz)

  • Up to 6 user power supply units

  • 2-JOB paralllel test with standard cabinet

  • 4-JOB parallel test with double cabinet

  • OPENFIX for open pin identification on digital components and connectors

  • Universal on-board programmer (up to 8 in parallel)

  • Boundary-scan test

  • Self-test at the module level

  • Receiver with pneumatic press and upper contrasts

  • Off-line Programming and Repair Stations

  • barcode and 2D code reading management; automatic statistic data collection

  • Automated programming via CAD data import
